Roche Combur Analyser

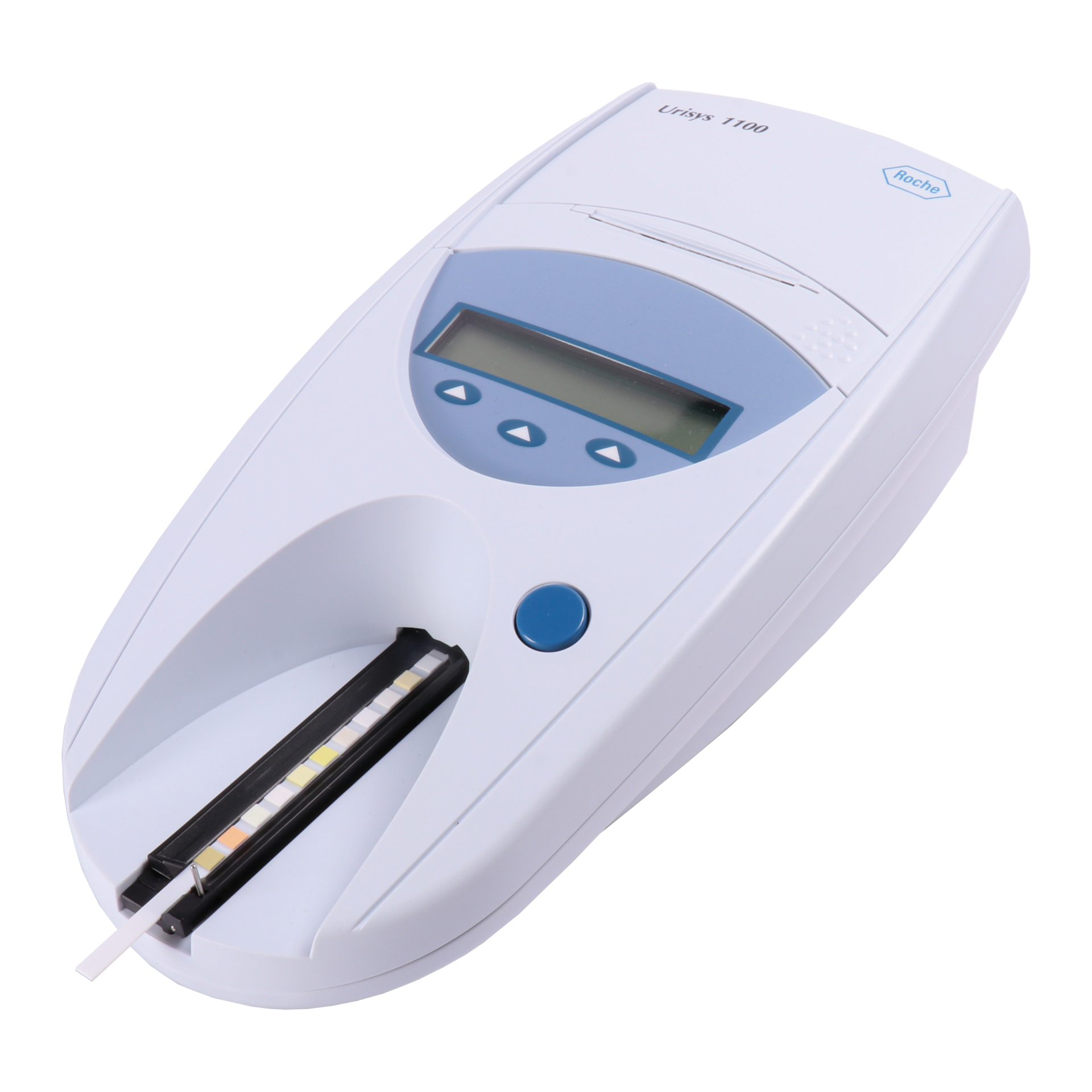

Roche Combur Urisys 1100 Analyser

Dip stick reader providing objective simultaneous record of up to 10 parameters in 1 minute.
Delivers reliable high-quality results.

The Roche Urisys 1100 urine analyser is a semi-automated portable urine testing analyser that supports healthcare staff by eliminating visual evaluation errors and providing printed results that can help in the management of a wide range of disorders.

Designed to improve #workflow efficiency in smaller labs, doctor offices and decentralised lab settings, such as point-of-care and reduce the potential for transcription errors.

The Roche Combur Urisys 1100 Analyser is a compact, portable, accurate and fully automatic system, which is helpful in management of a wide range of disorders.

The urine test strip (or dipstick) is a cost-effective method used to screen urine in select patient populations. It is used for screening, treatment monitoring, and patient self-testing in high-risk groups (for example, those at risk of urinary tract infections, chronic kidney disease or diabetes).

With the unique construction technology and design, the Combur-Test® strips help to ensure reliable quality and confidence in results for visual testing. When combined with the Urisys 1100 Analyser possible sources of visual evaluation error are virtually eliminated and a more standardised measurement can be ascertained, adding confidence to the test results and improving #patientexperience.

Results available in less than 1 minute
Output user configurable for a customised strip menu
Simple to use, minimal set up time
Fully portable

How the Roche Combur Urisys 1100 Analyser works

The Urisys 1100 system is a reflectance photometer designed to read and evaluate the urine test strips. It reads the Combur 10 strips under standardised conditions, saves the results and outputs them via its own inbuilt printer and/or serial interface.

The Urisys 1100 system is designed for In Vitro Diagnostics (IVD) and should be used by qualified physicians and laboratory staff.

Urine strips provide a rapid and cost-effective means for conducting clinically useful chemical analyses of urine including specific gravity, pH, leukocytes, nitrite, protein, glucose, ketones, urobilinogen, bilirubin, blood, and microalbumin.

For more information on the strip technology, please click here: https://diagnostics.roche.com/global/en/products/instruments/combur_chemstripnephurnitur.html

How the Roche Combur Urisys 1100 Analyser helps

Accurate urine analysis can be key in diagnosing and differentiating between a range of various conditions and can give healthcare professionals the key information needed to inform treatment pathways.

The Roche Combur Urisys 1100 Analyser provides reliable and rapid clinically useful chemical analyses of urine including: specific gravity, pH, leukocytes, nitrite, protein, glucose, ketones, urobilinogen, bilirubin, blood, and microalbumin.

How to use the Roche Combur Urisys 1100 Analyser

The Roche Combur Urisys 1100 Analyser is easy to run, the user-friendly and simple menu navigation can be used with minimal training:

Step 1

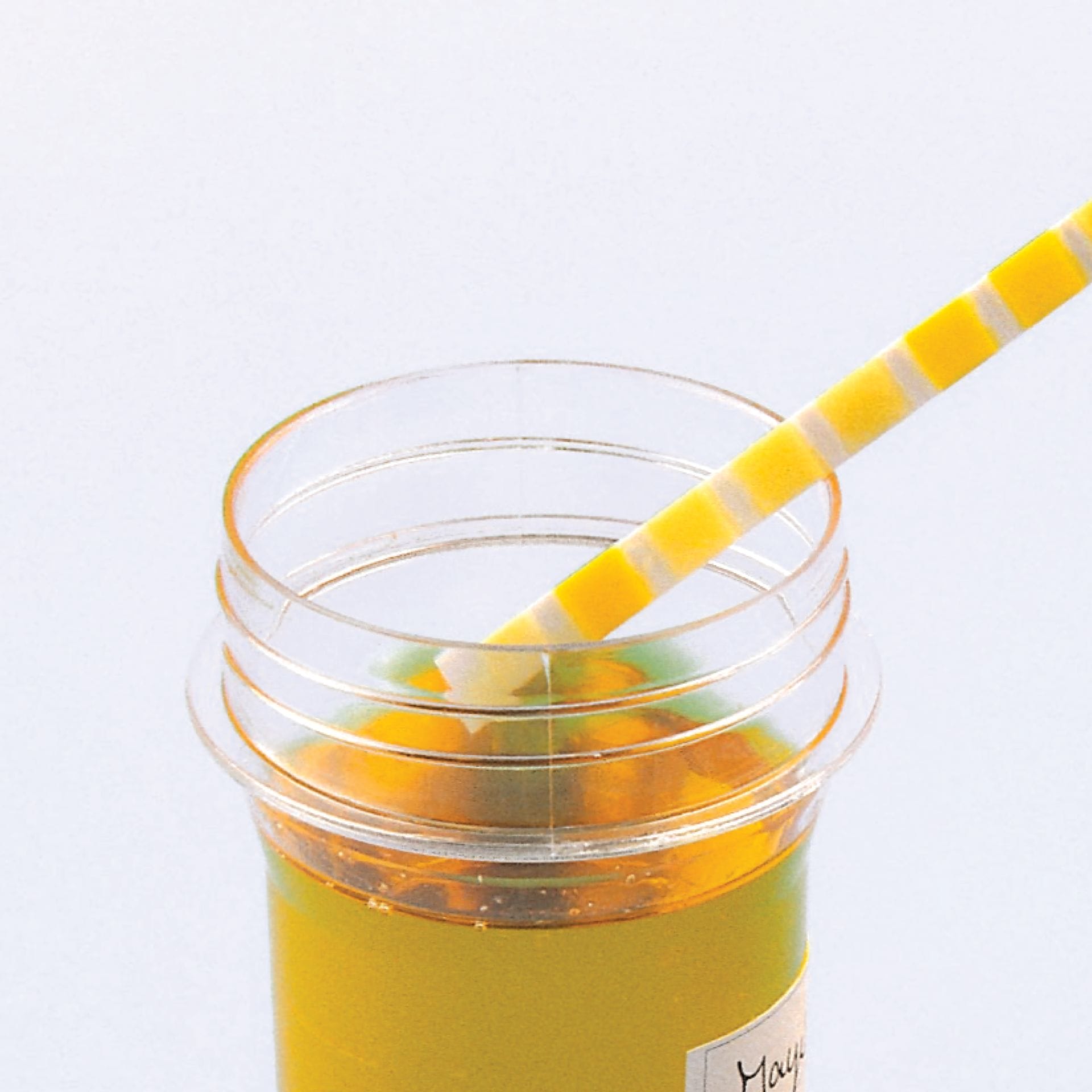

Dip the test strip briefly (1 sec) in the urine sample. Draw the long edge of the strip along the rim of the specimen container to remove excess urine. Note: Do not bend the test strip!

Step 2

Touch the long edge and the back side of the strip briefly (approx. 1 second) to an absorbent paper to remove excess urine.

Step 3

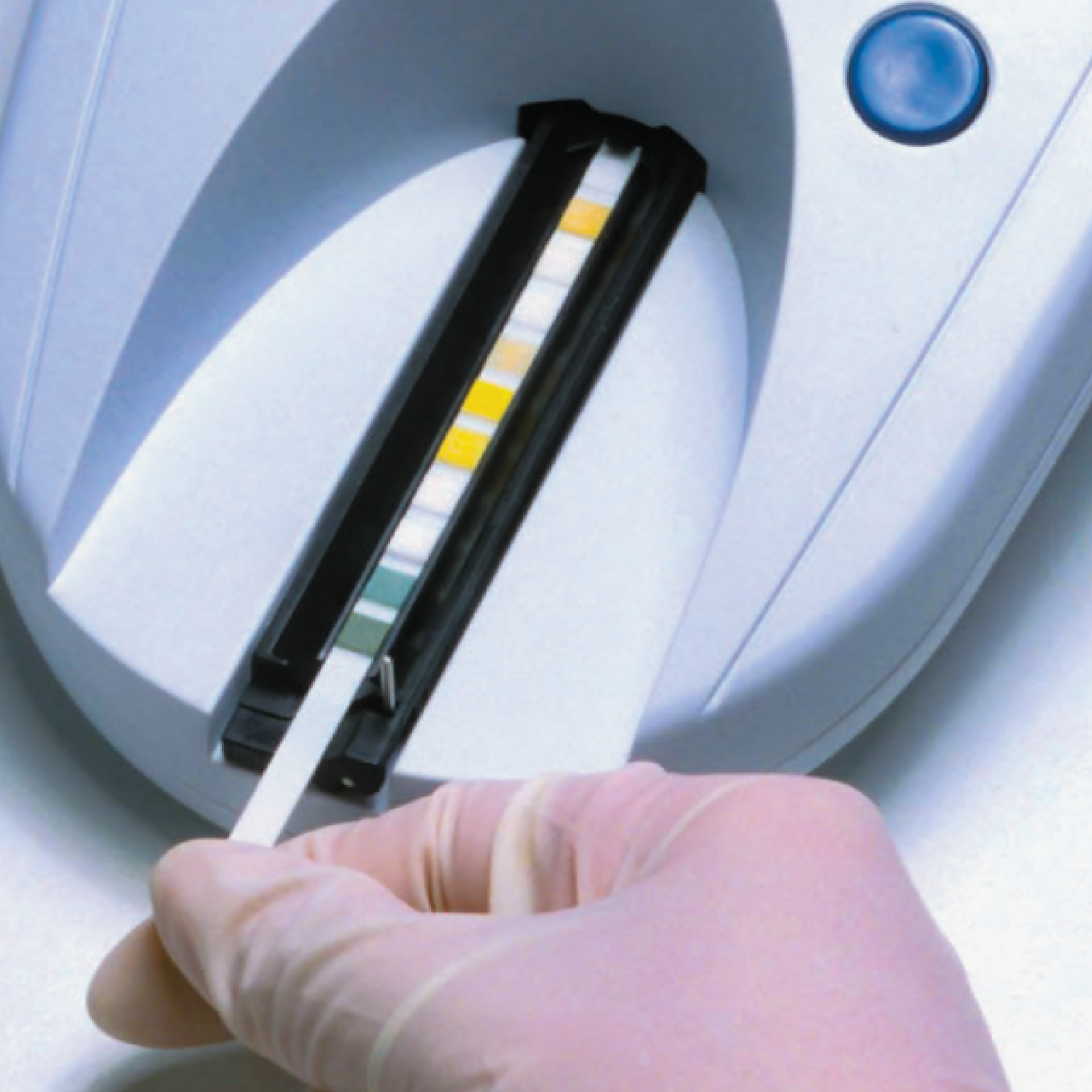

Place the test strip, with the pads facing upward, on the test strip tray.

Step 4

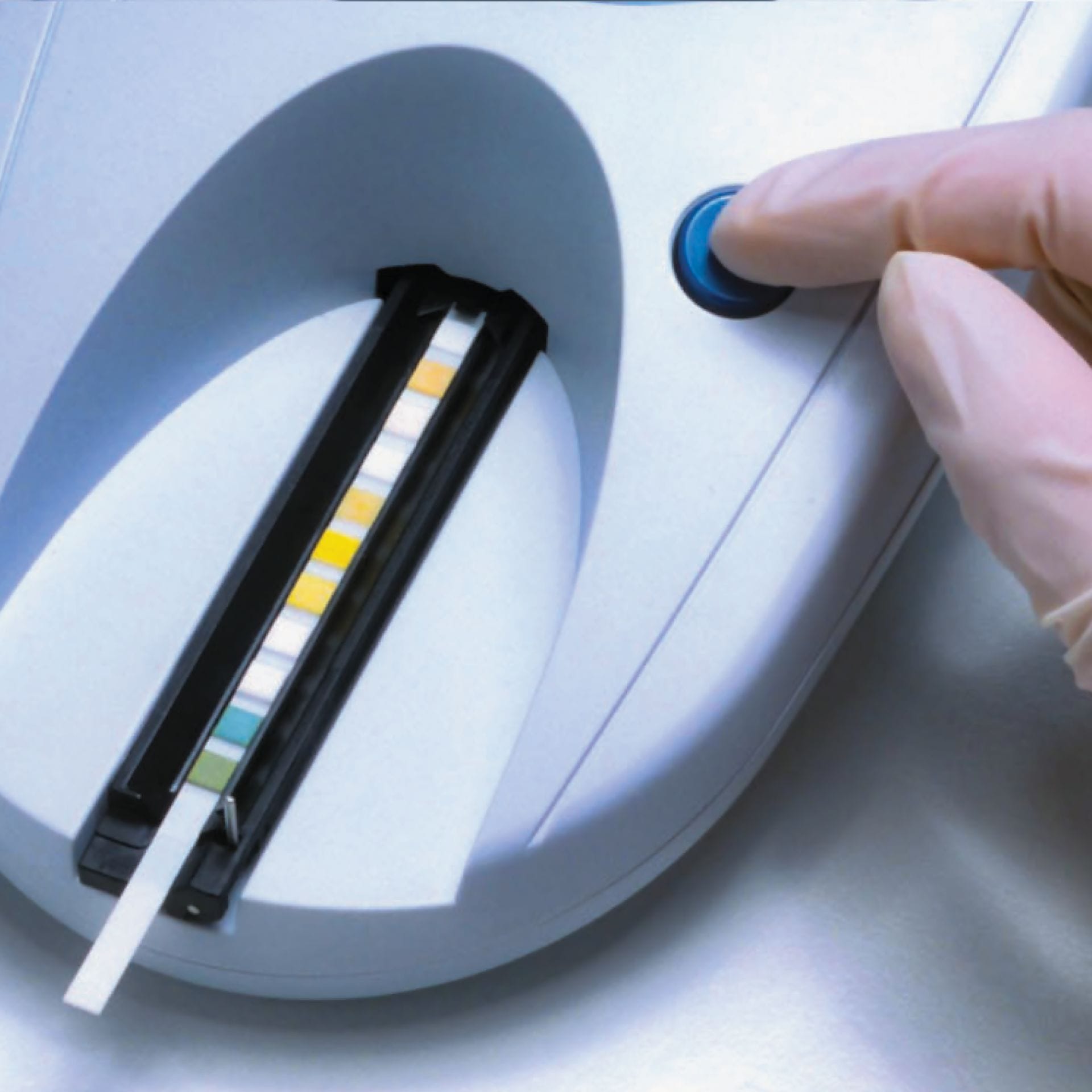

Press the START button*. After the confirmatory beep the retaining bar will close. Make sure that the test strip is correctly positioned in the notch of the test strip tray. Note: * Operator ID has to be entered, if this function is activated.

Step 5

It is important that the test strip is correctly positioned and the START button pressed 5–10 seconds after the strip is dipped.

Step 6

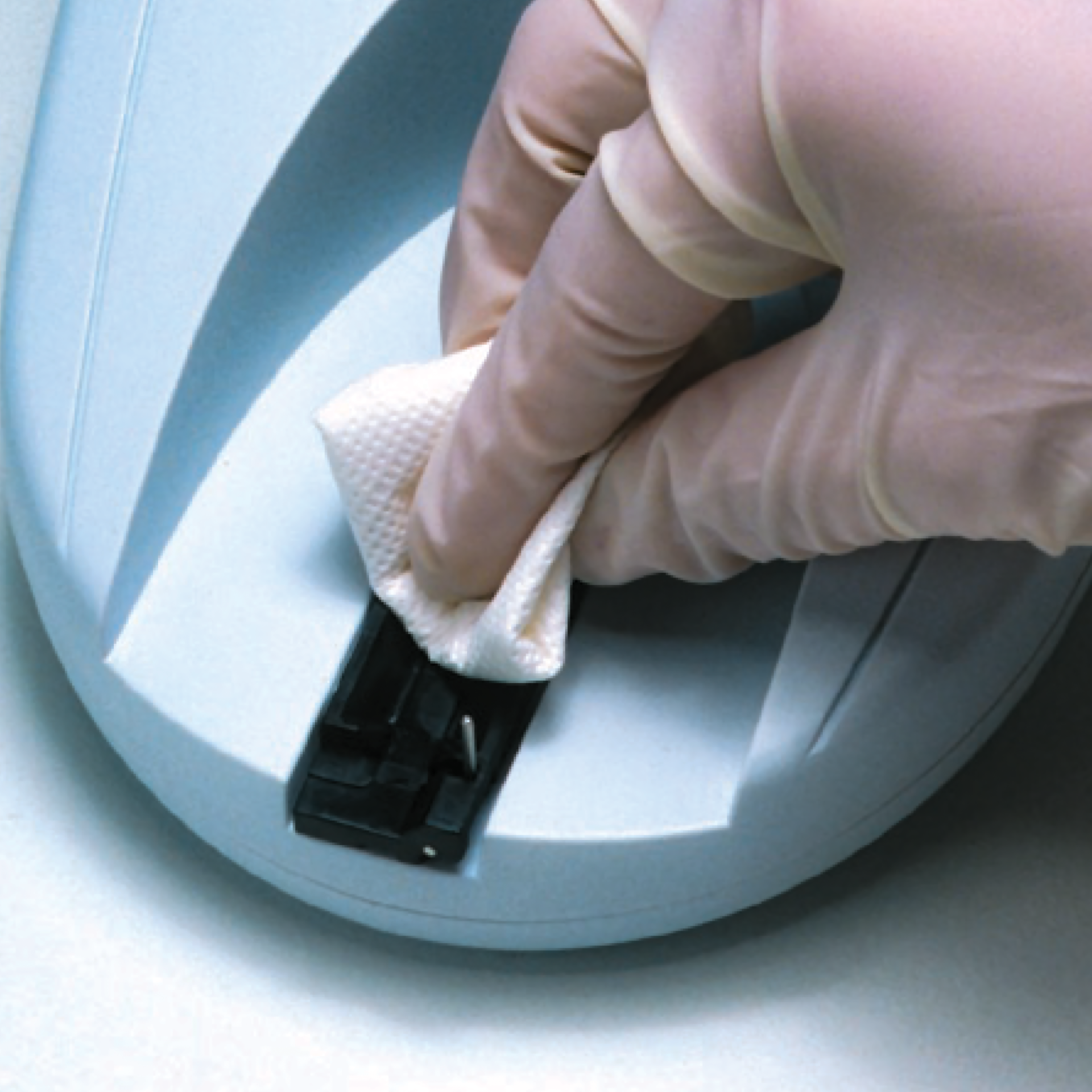

Remove and discard the used test strip when measurement is complete. Wipe off any urine residues with a lint-free cloth.
